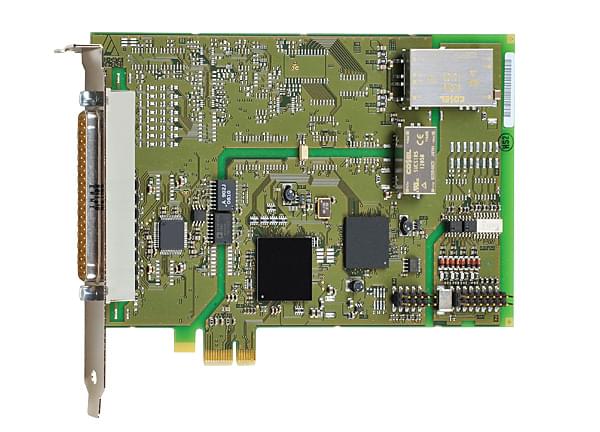

APCIe-3521 – DAQ PCIe Card – Analog Outputs
The PCI-Express analog output card APCIe-3521 has 8/4 analog outputs, 16-bit, and 8 digital I/O, 24 V. The card is especially suited for applications in the sector of industrial process control, measurement technology and monitoring, for example for the control of chemical processes etc. in the harsh industrial environment.
Get a quoteOpis
Features
Analog outputs
- 8 or 4 analog outputs, optically isolated 500 V
- Voltage or current outputs
- 16-bit resolution (15-bit for 0-10 V)
- Output ranges: ±10 V, 0-10 V (through software)
- Output voltage after reset: 0 V
- Each output has its own ground line (without optical isolation)
- Output current ±5 mA max. for voltage outputs
- Current outputs: 0-20 mA, min. load 10 Ω, max. load 560 Ω, at 20 mA
- EMI filters
Cyfrowe
- 4 dig. inputs including 1 interruptible input
- 4 dig. outputs, 24 V, optically isolated
Timer / Watchdog
- 2 timers of which 1 can be used as a watchdog
Safety features
- Optical isolation 500 V min
- Creeping distance IEC 61010-1
- Protection against high-frequency EMI
- Noise neutralisation of the PC supply
Applications
- Industrial process control
- Industrial measurement and monitoring
- Control of chemical processes
- Factory automation
- Laboratory equipment, instrumentation
Oprogramowanie
Standard drivers and samples for:
- Linux
- Windows (32/64)
- Real-time with Linux (i.e Xenomai) and Windows (i.e RTX) on request
On request:
Further operating systems, compilers and samples. Driver download: www.addi-data.com/downloads
