APCI-1710 – DAQ PCI Card – Counting Inputs
The PCI multifunction counter card APCI-1710 is equipped with 4 programmable function modules, that can individually configured for each channel with one of the available functions: incremental counter, SSI synchronous serial interface, counter/timer, pulse acquisition, frequency/pulse width/period duration/velocity measurement, PWM, digital inputs and outputs, … The card is suited for applications like event counting, position acquisition, motion control, batch counting etc. in the harsh industrial environment.

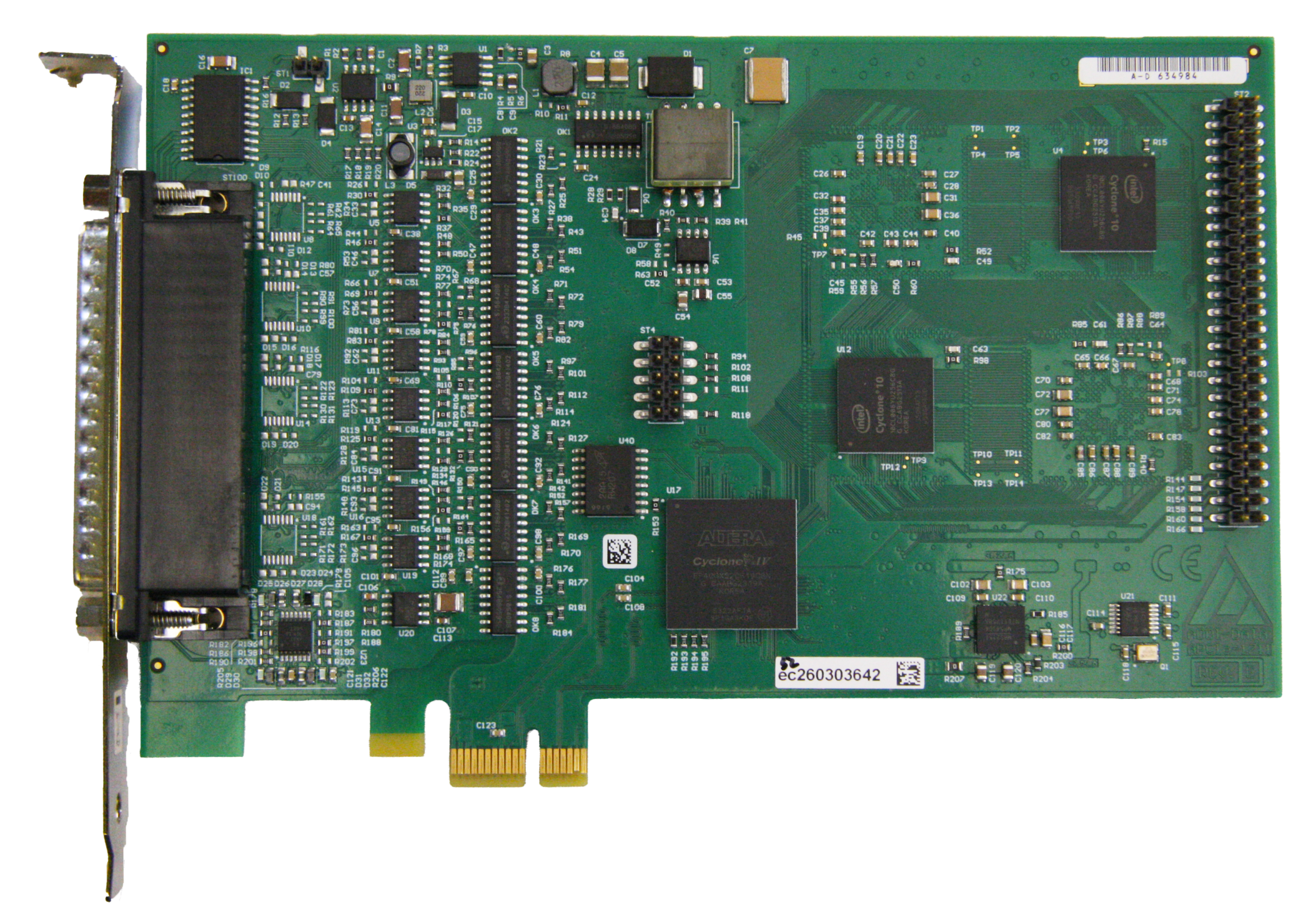

PRODUCT DISCONTINUED – The new card available is the APCI-1712.
Get a quote for the APCI-1712
Description
The board APCI-1710 is a fast multifunction and multichannel counter board for the PCI bus. The strengths of this board are its wide range of applications and high precision and reliability for rough industrial applications. With this board you can realise many different applications on the same hardware base. The board is supplied with a pool of functions which provides the user with maximum efficiency yet minimum space and parts requirement. The functions are individually configured for each channel through the supplied software. The flexible programming facilities on this board allow many different user applications to be quickly and easily developed and reconfigured as further requirements arise. Thanks to the FPGA board structure, further counting applications can be realised through software adaptation. Contact us!
Features
- 32-bit data access
- Up to 2.5 MHz input frequency
- Signals in TTL or RS422 mode (APCI-1710), 24 V signals (APCI-1710-24V)
- Four onboard programmable function modules
- Reprogrammable functions
Functions
- Incremental counter for the acquisition of incremental encoders (90°phase-shifted signals)
- SSI Synchronous Serial Interface. The SSI function is an interface for systems which allow an absolute position information via serial data transfer
- Counter/timer (82C54)
- Pulse acquisition
- Frequency measurement
- Pulse width modulation (PWM)
- Period duration measurement
- Velocity measurement
- Digital inputs and outputs
- Customised functions
Available channels on one function module
- 20 channels for digital inputs, optically isolated
- 8 channels, programmable either as digital inputs or outputs, optically isolated
- 4 digital power outputs, optically isolated
Available lines for each function module
- 8 lines are available for each function module
Applications
- Event counting
- Position acquisition
- Motion control
- Batch counting
Software drivers
Standard drivers and samples for:
- Linux
- Windows (32/64)
- Real-time with Linux (i.e Xenomai) and Windows (i.e RTX) on request
On request:
Further operating systems, compilers and samples. Driver download: www.addi-data.com/downloads
