APCIe-1564-5V

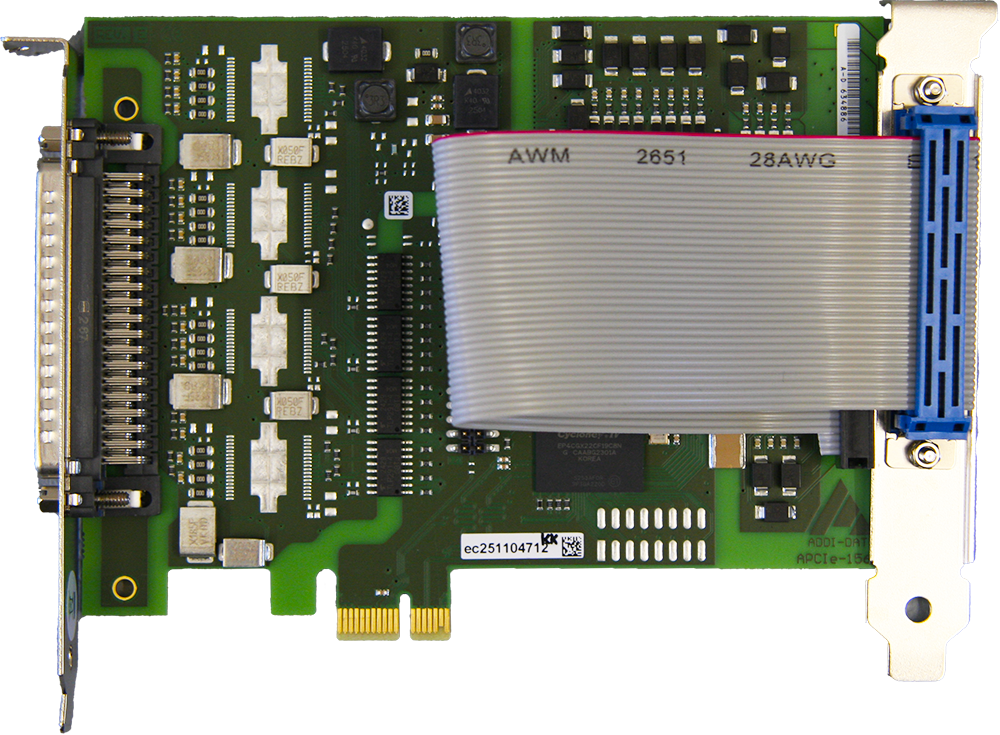

The PCI-Express 64 digital I/O board 5V APCIe-1564-5V has 64 digital inputs/outputs, 5 V. 2 versions of the board are available, the APCIe-1564-5V with Open Collector outputs and the APCIe-1564-5V-HS with High-Side outputs. The board is especially suited for applications like signal switching, ON/OFF monitoring of motors, lights etc., as interface to electromechanical relays, for automated test devices or as interface to machines in harsh industrial environment. Drivers for Windows 8/7/Vista/XP and Linux as well as programming samples are included.



Categories: , ,

Description

Features

Inputs:

  • 32 optically isolated inputs, 5 V, incl. 16 interruptible inputs
  • Channels 0–2 can be used as 32-bit counter inputs (up to 500 kHz)
  • Reverse voltage protection
  • All inputs are filtered

Outputs:

  • 32 optically isolated outputs, 5 V Open Collector outputs
  • Output current per channel 50 mA
  • Total current: 3 A typ. (fused through PTC resistor)
  • Watchdog for resetting the outputs to”0“
  • At Power-On, reset of the outputs to “0”
  • Current limit: ~ 1.5 A per 8 channels (through PTC)
  • Short-circuit current per output ~1.5 A typ.
  • Self-resetting fuse (electronic fuse)
  • Overtemperature and overvoltage protection
  • External 24 V voltage supply screened and filtered

Timer / Counter

  • 2 timers (12-bit), of which one can be used as a watchdog
  • 3 counter (32-bit)

Safety features

  • Optical isolation 1000 V
  • Creeping distance IEC 61010-1
  • Separate ground line for inputs and outputs
  • Protection against fast transients (burst), overvoltage, electrostatic discharge and high-frequency EMI

Applications

  • Industrial I/O control
  • PLC coupling
  • Signal switching
  • Interface to electromechanical relays
  • Automatic test equipment
  • ON/OFF monitoring of motors, lights…
  • Watchdog timer

Software

A CD-ROM with the following software and programming samples is supplied with the board.

Standard drivers for:

  • Linux
  • 32-bit drivers for Windows 8 / 7 / Vista / XP / 2000
  • Signed 64-bit drivers for Windows 8 / 7 / XP
  • Real-time use with Linux and Windows on request

Drivers and samples for the following compilers and software packages:

  • C#.NET, C

On request:

Further operating systems, compilers and samples. Driver download: www.addi-data.com/downloads
