APCIe-1711 – DAQ PCIe Cards – Counting Inputs

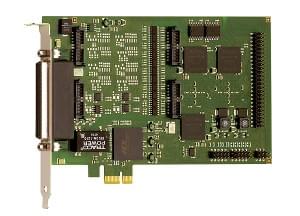

The card APCIe-1711 is a fast multifunction and multichannel counter card for the PCI Express bus. The strengths of this board are its wide range of applications and high precision and reliability in harsh industrial environment. With this board you can realise many different applications on the same hardware base. The card is supplied with a pool of functions which provides the user with maximum efficiency yet minimum space and parts requirement. The functions are individually configured for each channel through the supplied software. The flexible programming facilities on this board allow many different user applications to be quickly and easily developed and reconfigured as further requirements arise. Thanks to the FPGA board structure, further counting applications can be realised through software adaptation. Contact us!



Description

Features

  • 32-bit data access
  • RS422 driver with 5 MHz max. (10 MHz for the APCIe-1711-10MHz – without ESD protection)
  • With RS422/TTL input/output signals (APCIe-1711) or 24 V input signals (APCIe-1711-24V)
  • Four onboard programmable function modules

Functions

  • Incremental counter for the acquisition of incremental encoders (90° phase-shifted signals)
  • BiSS-Master (B and C mode)
  • SSI Synchronous Serial Interface. The SSI function is an interface for systems which allow an absolute position information via serial data transfer
  • Counter/timer (82C54)
  • Pulse acquisition
  • Frequency measurement
  • Pulse width modulation (PWM)
  • Period duration measurement
  • Velocity measurement
  • Digital inputs and outputs
  • Edge time measurement (ETM)
  • Parallel interface
  • Sin/Cos (1 Vpp, 11 µApp)
  • EnDat 2.2
  • Customised functions

Available channels on one function module

  • 4 channels, programmable either as digital inputs or outputs, optically isolated, RS422
  • 3 channels, digital inputs, optically isolated, 24 V
  • 1 digital power output, optically isolated, 24 V

Applications

  • Event counting
  • Position acquisition
  • Motion control
  • Batch counting

Software drivers

A CD-ROM with the following software and programming samples is supplied with the board.

Standard drivers for:

  • Linux
  • 32-bit drivers for Windows 8 / 7 / Vista / XP / 2000
  • Signed 64-bit drivers for Windows 8 / 7 / XP
  • Real-time use with Linux and Windows on request

Drivers and samples for the following compilers and software packages:

  • Microsoft VC++ • Borland C++ 5.01

On request:

Further operating systems, compilers and samples. Driver download: www.addi-data.com/downloads
